Story-driven Visualization

  • ID: VISPY-002
  • Type: Lesson
  • Audience: Public
  • Theme: Question-first plotting

Good visualization does not start with a library. It starts with a question.

Before writing code, define:

In this lesson, we begin with a simple analytical question and build the plot around it.

Step 1 — Load the data

import pandas as pd
from cdi_viz.theme import cdi_notebook_init

# Chapter init: resets the shared figure counter and ensures figures/ exists
cdi_notebook_init(chapter="02")

df = pd.read_csv("data/cdi-student-outcomes.csv")

print("First rows:")
print(df.head())
First rows:
     group  test_prep  study_hours  math_score  reading_score  writing_score
0  Group B  completed          3.9          58             64             51
1  Group A       none          7.7          67             85             61
2  Group A       none          9.3          83             65             73
3  Group A       none          3.9          60             67             48
4  Group A       none          8.3          68             63             47

Step 2 — Define the question

Suppose we ask:

Does study time relate to math performance?

This is a relationship question between:

  • study_hours
  • math_score

That suggests a scatter plot.

Step 3 — A minimal first plot (exported)

import matplotlib.pyplot as plt
from cdi_viz.theme import show_and_save_mpl

fig, ax = plt.subplots(figsize=(7.6, 4.6))

ax.scatter(df["study_hours"], df["math_score"], alpha=0.6)

ax.set_xlabel("Study hours per week")
ax.set_ylabel("Math score")

# Title + subtitle without overlap
fig.suptitle("Study Hours vs Math Score", fontweight="bold", y=1.02)
ax.set_title("A first look at the relationship", pad=10)

# Simple, readable grid (y only)
ax.grid(True, axis="y", linewidth=0.4, alpha=0.3)
ax.grid(False, axis="x")

fig.tight_layout()

show_and_save_mpl(fig)  # figures/02_001.png

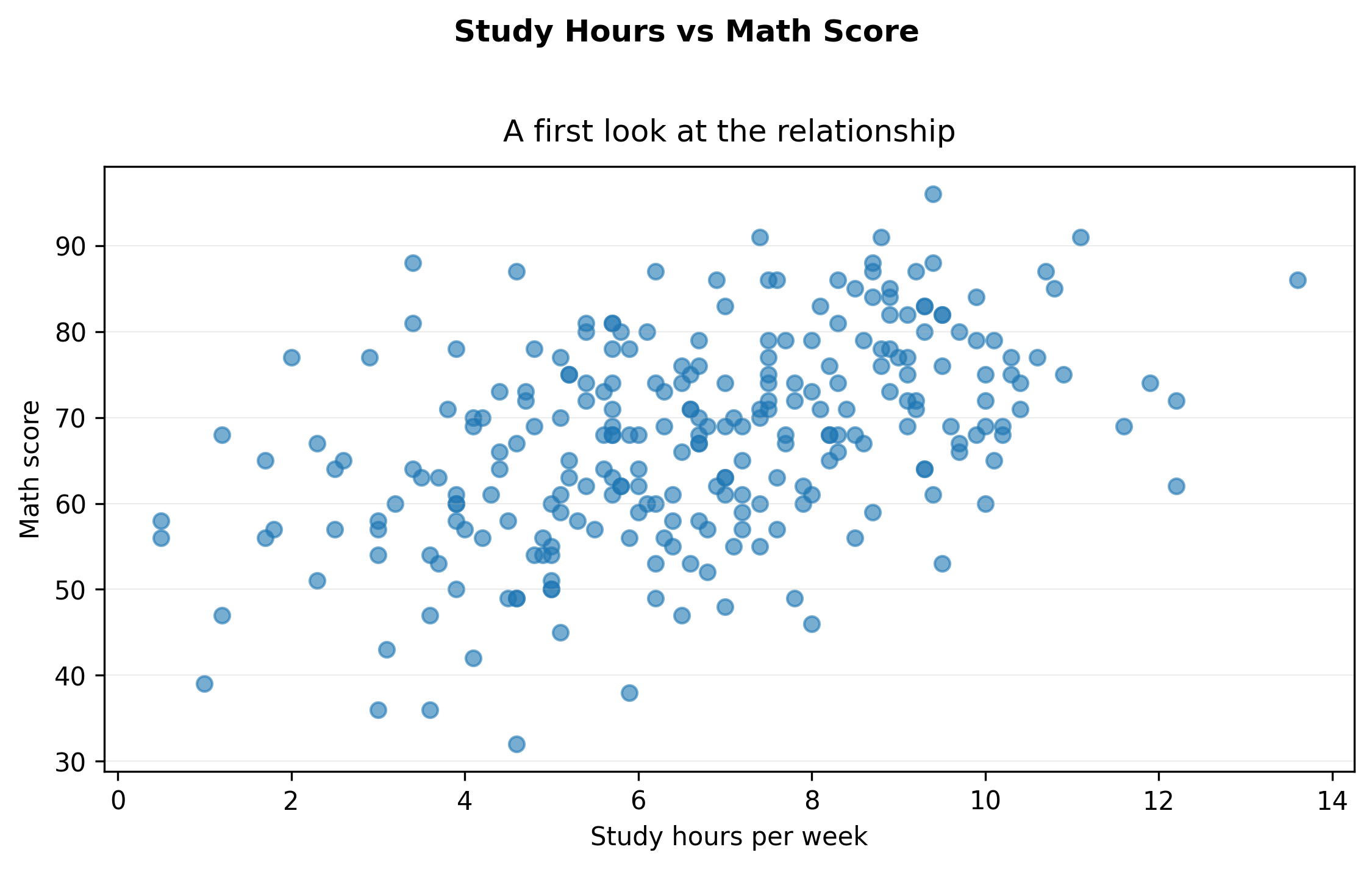

Saved PNG → figures/02_001.png

This answers the structural question:

  • Is there an upward trend?
  • Is the relationship linear?
  • Are there obvious outliers?

Step 4 — Make the comparison explicit (exported)

Now extend the question:

Does test preparation change the relationship?

This introduces grouping.

import matplotlib.pyplot as plt
from cdi_viz.theme import show_and_save_mpl

fig, ax = plt.subplots(figsize=(7.6, 4.6))

for grp, sub in df.groupby("test_prep"):
    ax.scatter(sub["study_hours"], sub["math_score"], alpha=0.6, label=str(grp))

ax.set_xlabel("Study hours per week")
ax.set_ylabel("Math score")

fig.suptitle("Study Hours vs Math Score", fontweight="bold", y=1.02)
ax.set_title("Trend shown separately by test preparation", pad=10)

ax.legend(title="Test prep")

ax.grid(True, axis="y", linewidth=0.4, alpha=0.3)
ax.grid(False, axis="x")

fig.tight_layout()

show_and_save_mpl(fig)  # figures/02_002.png
Saved PNG → figures/02_002.png

Now the visual supports comparison:

  • Is one group consistently higher?
  • Is the relationship mostly the same shape?

Step 5 — Interpret before optimizing

Interpret what you see before adjusting style.

  • There is a positive association between study hours and math score.
  • Students who completed test preparation tend to score higher.
  • The relationship appears approximately linear.

Key Takeaways

  • Start with a question, not a plotting function.
  • Match plot type to data structure.
  • Add grouping only when it strengthens the comparison.
  • Interpretation comes before aesthetic optimization.
