Annotations and Figure Polish

• ID: VISPY-008
• Type: Lesson
• Audience: Public
• Theme: Make figures self-explanatory

Most “professional” plots are not about fancy chart types.

They are about clarity:

• the figure communicates the point without extra narration
• key comparisons are labeled
• axes and titles carry meaning
• annotations guide attention

In this lesson you will learn how to polish figures using:

• Matplotlib annotations and text
• Seaborn overlays and reference lines
• Plotly annotations for interactive exploration

All outputs are exported to figures/ using CDI helpers.

---

Setup

import warnings
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

from cdi_viz.theme import (
    cdi_notebook_init,
    show_and_save_mpl,
)

warnings.filterwarnings("ignore")

cdi_notebook_init(chapter="08")

df = pd.read_csv("data/cdi-student-outcomes.csv")
print(df.head())

     group  test_prep  study_hours  math_score  reading_score  writing_score
0  Group B  completed          3.9          58             64             51
1  Group A       none          7.7          67             85             61
2  Group A       none          9.3          83             65             73
3  Group A       none          3.9          60             67             48
4  Group A       none          8.3          68             63             47

---

Matplotlib: highlight a key region

A simple but effective technique: highlight the region where a decision threshold matters.

Example: mark the “strong outcome” zone for math score.

fig, ax = plt.subplots(figsize=(7.6, 4.6))

ax.scatter(df["study_hours"], df["math_score"], alpha=0.6)

ax.set_title("Study hours vs math score")
ax.set_xlabel("Study hours per week")
ax.set_ylabel("Math score")

# Reference band
ax.axhspan(80, 100, alpha=0.12)
ax.text(
    x=df["study_hours"].min() + 0.2,
    y=96,
    s="Strong outcomes (≥ 80)",
    fontsize=11,
)

fig.tight_layout()

show_and_save_mpl(fig)  # figures/08_001.png

Saved PNG → figures/08_001.png

---

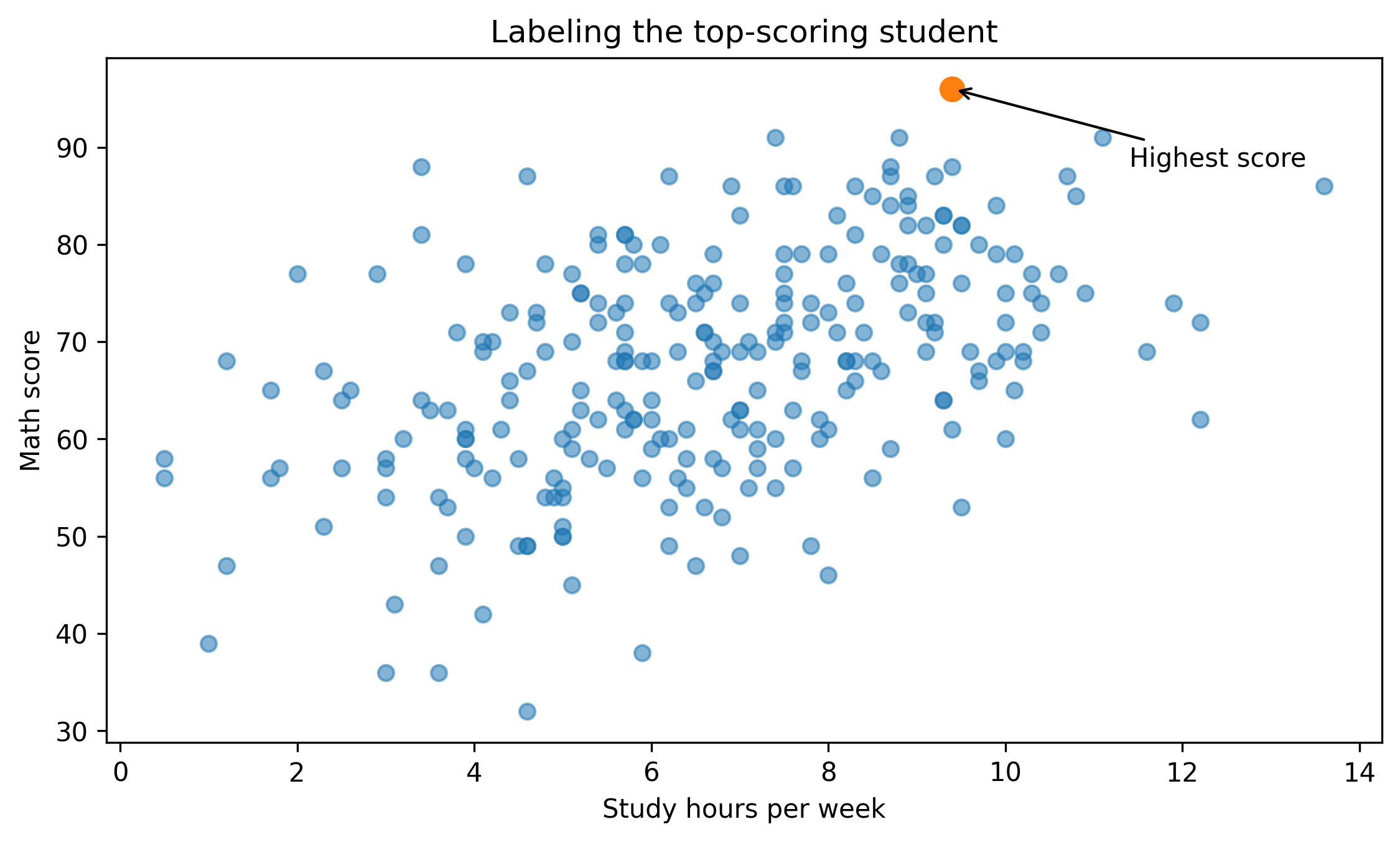

Matplotlib: label a specific point

If a single point drives your interpretation, label it.

# Find the top math score (one example point)
top_idx = df["math_score"].idxmax()
pt = df.loc[top_idx]

fig, ax = plt.subplots(figsize=(7.6, 4.6))
ax.scatter(df["study_hours"], df["math_score"], alpha=0.55)
ax.scatter([pt["study_hours"]], [pt["math_score"]], s=80)

ax.set_title("Labeling the top-scoring student")
ax.set_xlabel("Study hours per week")
ax.set_ylabel("Math score")

ax.annotate(
    "Highest score",
    xy=(pt["study_hours"], pt["math_score"]),
    xytext=(pt["study_hours"] + 2, pt["math_score"] - 8),
    arrowprops=dict(arrowstyle="->"),
)

fig.tight_layout()

show_and_save_mpl(fig)  # figures/08_002.png

Saved PNG → figures/08_002.png

Tip: avoid labeling too many points. If everything is labeled, nothing is emphasized.

---

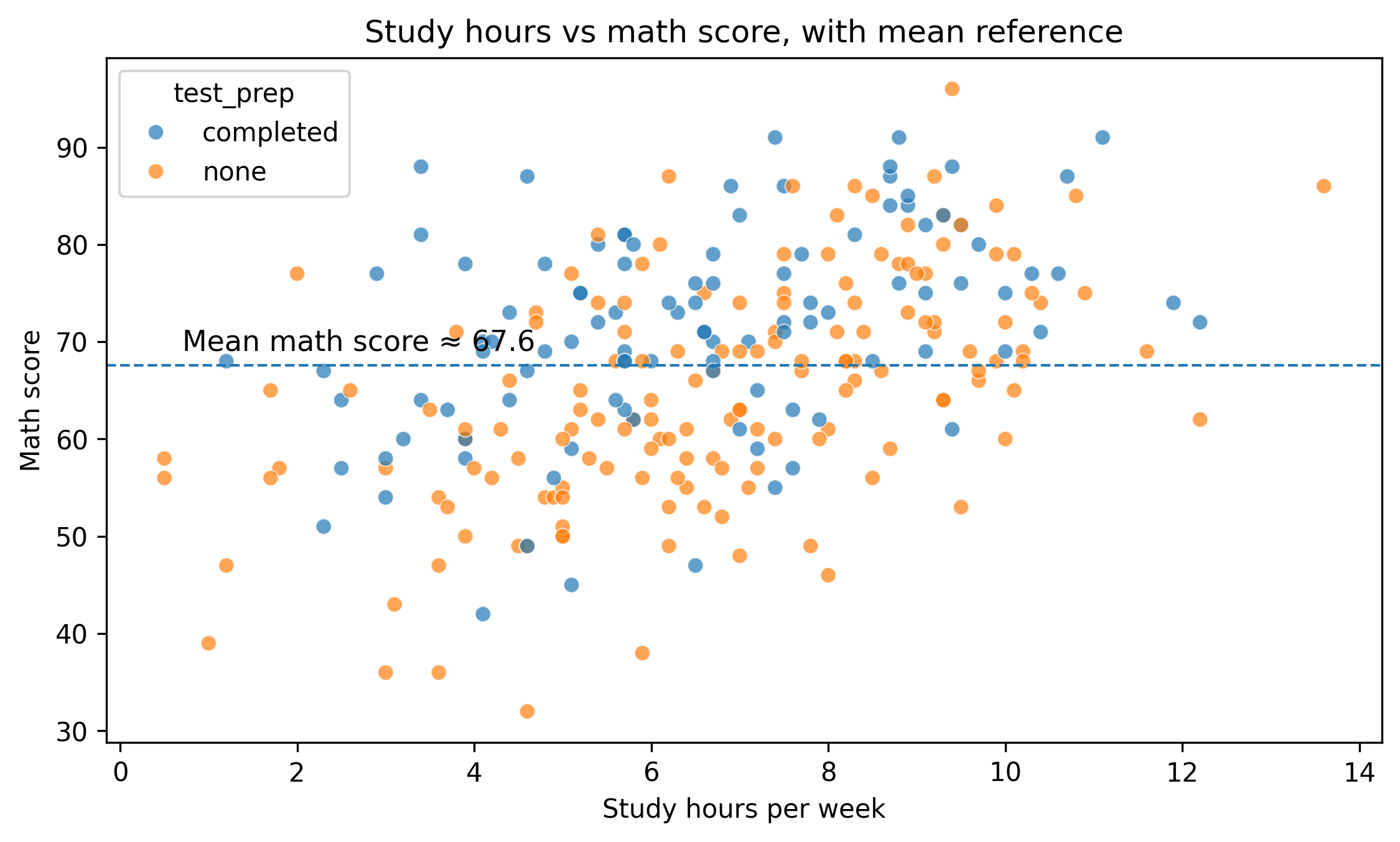

Seaborn: add a reference line (mean)

Reference lines help readers orient quickly.

fig, ax = plt.subplots(figsize=(7.6, 4.6))

sns.scatterplot(data=df, x="study_hours", y="math_score", hue="test_prep", alpha=0.7, ax=ax)

mean_score = df["math_score"].mean()
ax.axhline(mean_score, linestyle="--", linewidth=1)

ax.set_title("Study hours vs math score, with mean reference")
ax.set_xlabel("Study hours per week")
ax.set_ylabel("Math score")

ax.text(
    x=df["study_hours"].min() + 0.2,
    y=mean_score + 1.5,
    s=f"Mean math score ≈ {mean_score:.1f}",
    fontsize=11,
)

fig.tight_layout()

show_and_save_mpl(fig)  # figures/08_003.png

Saved PNG → figures/08_003.png

---

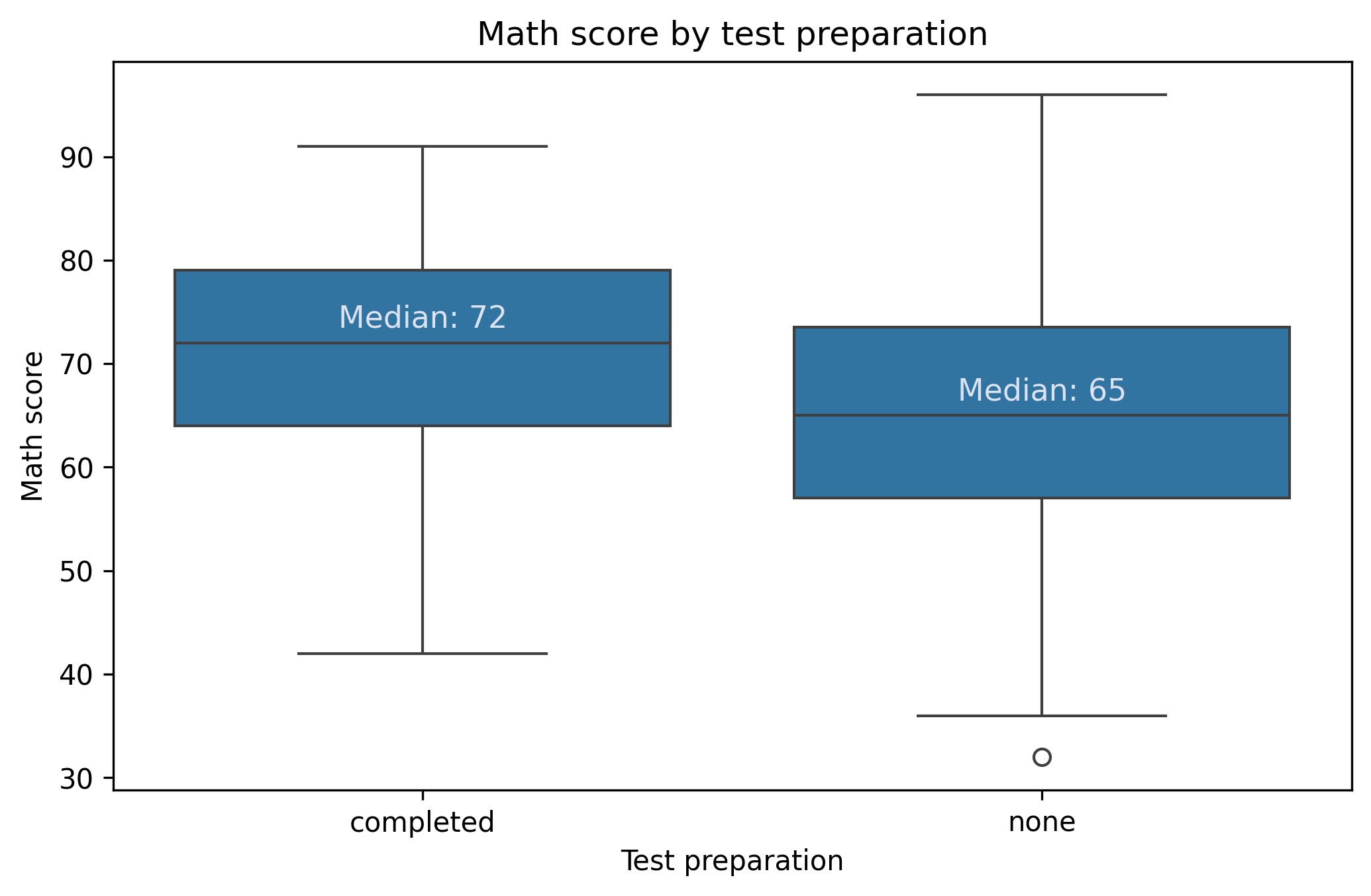

Seaborn: annotate group summaries

When using box plots, add the summary as text only if it improves the message.

Here we add medians above each group.

fig, ax = plt.subplots(figsize=(7.0, 4.6))

sns.boxplot(data=df, x="test_prep", y="math_score", ax=ax)

ax.set_title("Math score by test preparation")
ax.set_xlabel("Test preparation")
ax.set_ylabel("Math score")

# Add median labels
medians = df.groupby("test_prep")["math_score"].median()
for i, cat in enumerate(medians.index):
    ax.text(
        i,
        medians[cat] + 1.5,
        f"Median: {medians[cat]:.0f}",
        ha="center",
        fontsize=11,
        color="#dbe2f0",  # light grey (CDI-friendly)
    )

fig.tight_layout()

show_and_save_mpl(fig)

Saved PNG → figures/08_004.png

---

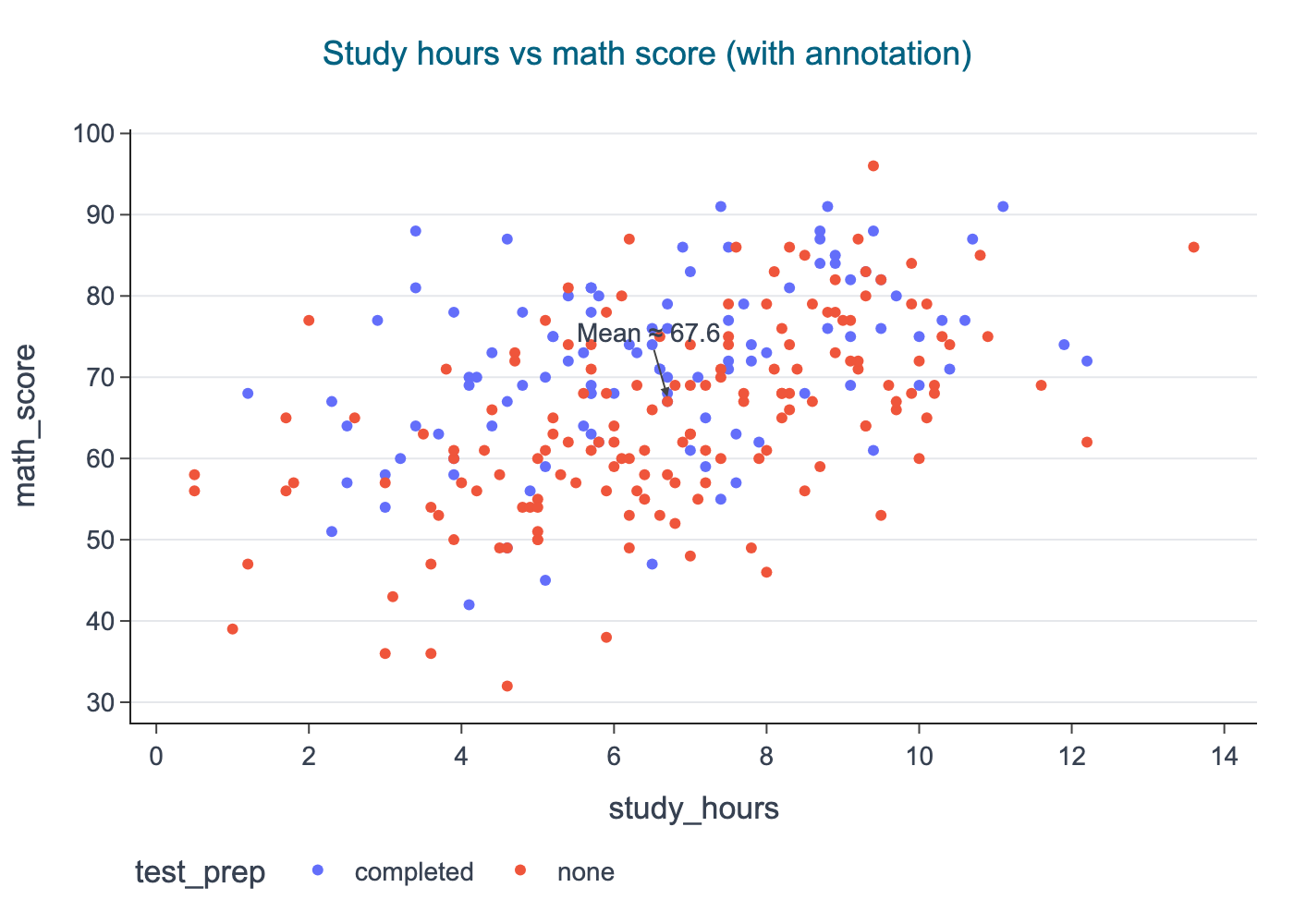

Plotly: annotations for interactive exploration

Plotly is useful for exploration because you can inspect points. But you can also add annotations to guide the reader.

import plotly.express as px
from cdi_viz.theme import cdi_theme, show_and_save_plotly

fig = px.scatter(
    df,
    x="study_hours",
    y="math_score",
    color="test_prep",
    hover_data=["group", "reading_score", "writing_score"],
    title="Study hours vs math score (with annotation)",
)

# Add an annotation near the mean
mean_score = df["math_score"].mean()
fig.add_hline(y=mean_score, line_dash="dash")
fig.add_annotation(
    x=df["study_hours"].median(),
    y=mean_score,
    text=f"Mean ≈ {mean_score:.1f}",
    showarrow=True,
    arrowhead=2,
    ay=-35,
)

cdi_theme(fig)

show_and_save_plotly(fig, show=False)  # figures/08_005.png

Saved PNG → figures/08_005.png

---

A polish checklist

Before you export a figure, check:

• Does the title answer a question, not just name variables?
• Are axis labels readable and specific?
• Is there unnecessary legend clutter?
• Is the key comparison highlighted?
• Are annotations minimal and purposeful?
• Would a reader understand the plot without you speaking?

---

Key Takeaways

• Annotations turn plots into explanations.
• Use reference lines and bands to show thresholds.
• Label only the points that matter.
• Add summaries only when they improve the message.
• Keep the figure readable without narration.

---

Exercises

1. Add a threshold band to a histogram (choose a meaningful cutoff).

2. Label one extreme point (max or min) on a scatter plot.

3. Add median labels on a box plot for reading_score by test_prep.

4. In Plotly, add a vertical line at the median of study_hours and annotate it.
